EXT-100SL18G

UltraSlim 4K/60 HDMI® 2.0 Extender

over HDBaseT™ up to 330ft. (100m) & PoH

Version: - _ 7 .0EXT 100SL18G 201 V1

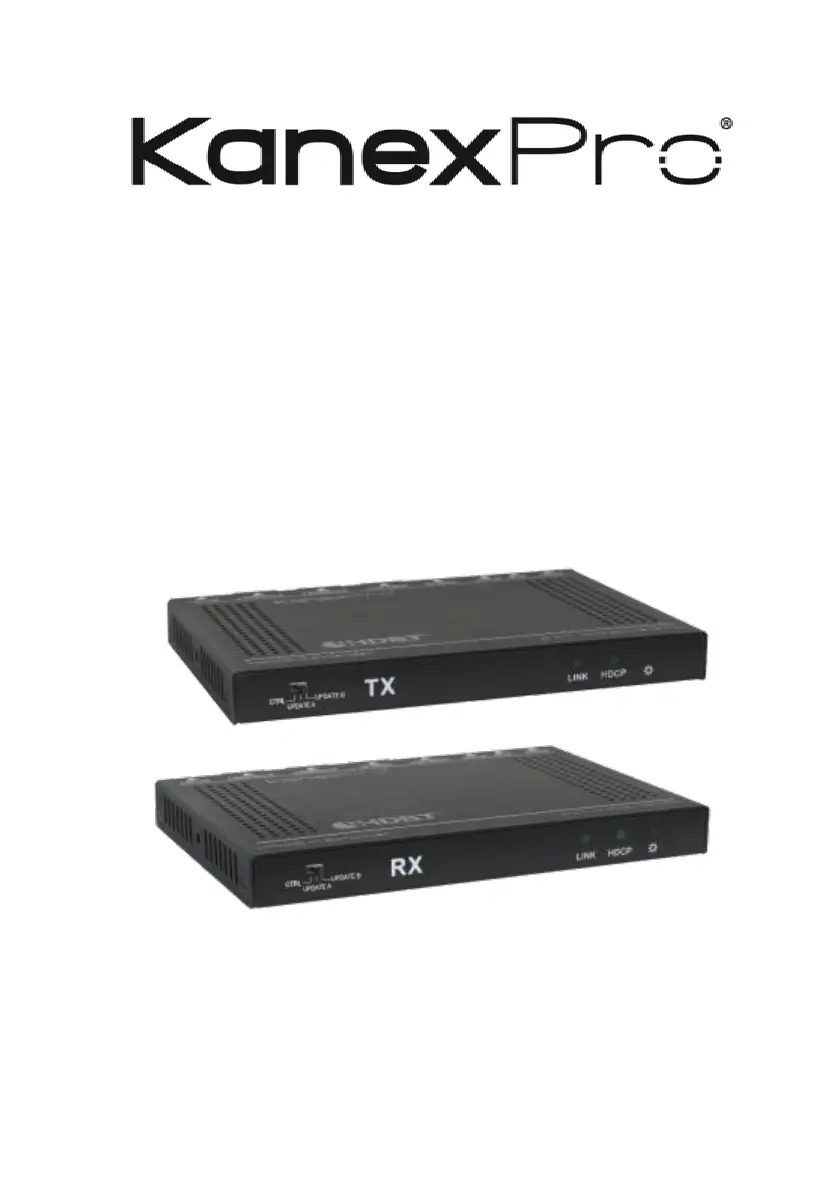

HDBaseT Extender Set

1 | P a g e

Statement

Read this user manual carefully before using this product. Pictures shown in this manual is for reference

only, different model and specifications are subject to real product. This manual is only for operation

instruction only, not for any maintenance usage. The functions described in this version are updated till

December , 2017. In the constant effort to improve our product, we reserve the right to make functions 27

or parameters changes without notice or obligation. Please refer to the dealers for the latest details.

Safety Precaution

To insure the best from the product, please read all instructions carefully before using the device. Save

this manual for further reference.

 Follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

 Do not dismantle the housing or modify the module to avoid electrical shock or burn.

 Using supplies or parts not meeting the products specifications may cause damage, deterioration or ’

malfunction.

 Do not expose the unit to rain, moisture or install this product near water.

 Install the device in a place with fine ventilation.

 Do not twist or pull by force ends of the optical cable. It can cause malfunction.

 Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before

cleaning.

 Unplug the power cord when left unused for a long period of time.

 Refer all servicing to qualified service personnel.

After-sales Service

We provide limited warranty for the product within counting from the first day you buy this three years

product (The purchase invoice shall prevail).

Introduction

The KanexPro EXT-100SL18G extender is an UltraSlim 4K /60Hz transmitter - receiver set designed to

extend natural and uncompressed ultra HD 4K signals from your HDMI source device to a 4K display

remotely located 230 feet away and full HD 1080p signals up to 330ft.(100m). It also supports PoH

(power over HDBaseT) requiring you to power only from one side, either the sender or receiver. For

dynamic range and wide color range (gamut) HDR and 4:4:4 Chroma color sampling are one of the key

features of these extenders. It also adds 2x Ethernet ports for LAN access and connecting to devices to

internet.

HDBaseT Extender Set

2 | P a g e

Features

 Ultra Slim 330ft. (100m) HDMI extender over HDBaseT w/ PoH

 Extend up to 70m for 4K/60 video w/ 4:4:4 Chroma

 HDR (high dynamic range) & wider color gamut support

 Supports Ultra HD 4K@60Hz resolutions &

 Video resolutions from 1080p/60@48bit

 18 Gbps bandwidth

 Bi-directional PoH (power over HDBaseT)

 HDCP 2.2 and EDID compliant

 CEC Pass-thru

 IR input/output - embedded over CATx extension

 Dolby TrueHD & DTS Master Audio ready

 Supports uncompressed audio - LPCM

 Bi-directional RS-232 & IR control

 Ultra Slim enclosure w/ separate mounting ears

 One locking power supply included

 Backed by KanexPro 3-year parts and labor warranty

Note: Please use a CAT5e/6 cable with low impedance (Shielded twisted pair is recommended

with proper grounding) for excellent transmission of AV signals.

Product specificaties

Merk:	KanexPro
Categorie:	AV extender
Model:	EXT-100SL18G
Kleur van het product:	Zwart
Soort:	AV-zender & ontvanger
Gebruikershandleiding:	Ja
LED-indicatoren:	Ja
Ethernet LAN:	Ja
Ondersteunde video-modi:	1080p, 2160p
Maximum resolutie:	- Pixels
Meegeleverde kabels:	RS-232
Vermogensverbruik (max):	20 W
HDCP:	Ja
Aansluiting voor netstroomadapter:	Ja
HDMI versie:	2.0
Remote (IR) ingang:	1
Output current:	1.25 A
Remote (IR) uitgang:	1
HDMI in:	1
RJ-45 uitgang ports:	2
Bandbreedte:	18 Gbit/s
Aantal HDMI-uitgangen:	1
Receiver afmetingen (B x D x H):	152 x 104 x 16.2 mm
RJ-45 invoer ports:	2
Operating voltage:	24 V
Maximaal bereik:	70 m
AC-ingangsspanning:	100 - 240 V
AC-ingangsfrequentie:	50 - 60 Hz
Bedrijfstemperatuur (T-T):	-10 - 50 °C
Relatieve vochtigheid in bedrijf (V-V):	0 - 90 procent
Receiver gewicht:	240 g
Transmitter afmetingen (WxDxH):	152 x 104 x 16.2 mm
Transmitter gewicht:	240 g
Inclusief IR-ontvanger:	Ja
