THANK YOU
for purchasing a JBL®GTO17T automotive
tweeter. We’ve organized this manual to make
your installation as simple and trouble-free
as possible. Please read it thoroughly before
proceeding. Remember to keep your sales
receipt and this manual in a safe place so
both are available for future reference.
GRAND
TOURING®
SERIES
GTO17T
tweeter
owner’s
manual
2
INSTALLATION WARNINGS AND TIPS
ABOUT THESE
INSTRUCTIONS
Installation of automotive stereo
components can require extensive
experience with a variety of mechanical
and electrical procedures. Although these
instructions explain how to install JBL
GTO17T tweeters in a general sense, they
do not show the exact installation methods
for your particular vehicle. If you feel you
do not have the experience, do not attempt
the installation yourself – instead, ask your
authorized JBL car audio dealer about
professional installation options.
LOUD MUSIC AND HEARING
Playing loud music in an automobile can
permanently damage your hearing, as well
as hinder your ability to hear traffic. The
maximum volume levels achievable with
JBL speakers, combined with high power
amplification, may exceed safe levels for
extended listening. We recommend using
low volume levels when driving. JBL
accepts no liability for hearing loss, bodily
injury or property damage as a result of use
or misuse of this product.
ABOUT THE FILTER
Passive filter design involves precise
circuit design and component selection.
Moreover, a well-designed filter circuit
provides an intended electrical response,
when combined with the electrical proper-
ties of the speaker, to provide a particular
acoustic response. Each enclosed filter has
been optimized to provide a flat response
when used with a JBL GTO17T tweeter.
Do not use another brand or type of
passive crossover, or connect more than
one tweeter to a crossover. Doing so may
damage the tweeter.
INSTALLATION TIPS
• Always wear protective eyewear when
using any tools.
• Turn off all audio components and other
electrical devices before you start.
Disconnect the negative (–) lead from
your vehicle’s battery.
• Keep speakers in their package until
final installation. When moving a speaker,
always rest it with the cone or dome
facing up. Never use force to install
any speaker.
• Check clearances on both sides of a
planned mounting surface before drilling
any holes or installing any screws.
Remember that the screws can extend
behind the surface.
• At the installation sites, locate and make a
note of all fuel lines, hydraulic brake lines,
vacuum lines and electrical wiring. Use
extreme caution when cutting or drilling
in and around these areas.
• Before drilling or cutting holes, use a
utility knife to remove unwanted fabric
or vinyl to keep material from snagging
in a drill bit or saw.
• For door installations, check the
clearance with the windows throughout
the range of the window’s travel, and
verify that a mounted speaker will not
interfere with the window crank or
power-window mechanism.
• If mounting speakers elsewhere, check
for clearance around rear-deck torsion
bars, glove box or other structural
elements.
• Do not mount speakers where they will
get wet.
ABOUT PLACEMENT

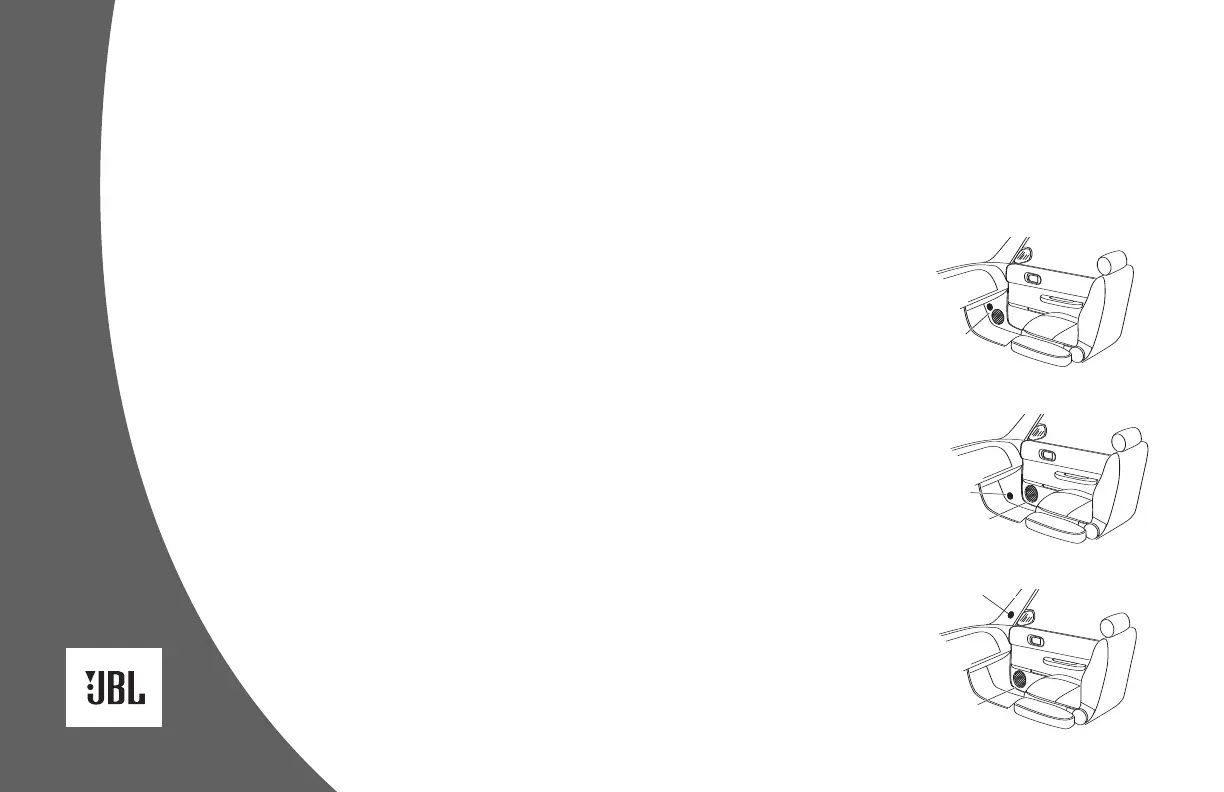

Figures 1 through 3 show possible speaker
placements, with Figure 1 being more
desirable. We recommend using the kick
panel for mounting to obtain the best
staging and imaging in most vehicles.
Figure 1. Mounting the woofer and
tweeter in the kick panel.
Figure 2. Mounting the woofer in the door
and the tweeter in the kick panel.
Figure 3. Mounting the woofer in the door
and the tweeter in the A-pillar.
SPEAKER PLACEMENT
TWEETER
and
WOOFER
on kick panel
TWEETER
in A-pillar
WOOFER
in factory
door location
TWEETER
on kick panel
WOOFER
in factory
door location
SURFACE-MOUNT
Figure 4. Surface-mounting the tweeter
and connecting the crossover.
FLUSH-MOUNT
Figure 5. Mounting the tweeter using
the I-Mount
™
(patent no. 5,859,917)
flush-mounting kit.
TWEETER ANGLE
Figure 6. Aim the tweeter at the listening
position by sliding the screw in the
groove on the back of the tweeter cup
and lock the tweeter in place using the
small retaining screw. Rotate the entire
assembly in the mounting surface and
tighten the large hand nut.
Figures 7A through 7D. The Starfish
™
tweeter mount is intended to be used
when the tweeter will be installed behind
a factory grille (e.g., replacing the factory
tweeter behind a door panel). The Starfish
will allow you to mount the component
tweeter directly to the panel itself or to the
area behind the panel. The six mounting
tabs can be removed easily to create a
number of custom configurations.
Note: Check screw clearance before
installing. Use glue if clearance is an
issue.
Note: Not all possible mounting
configurations are shown.
Figure 7A. Surface-mounted behind grille
panel.
Figure 7B. Flush-mounted to surface
behind grille panel.
Figure 7C. Mounted to grille panel.
Figure 7D. In-dash location (may require
gluing).
3
TWEETER INSTALLATION
1
SLIDE SCREW UP OR
DOWN TO ADJUST
TWEETER ANGLE.
4
SECURELY TIGHTEN
THE LARGE HAND NUT.
2
TIGHTEN SCREW TO
LOCK ANGLE SETTINGS.
3
ROTATE ENTIRE ASSEMBLY
TO AIM ANGLED TWEETER
TOWARD LISTENER.
1
2
3
1
2
(–) SMALL LUG
(+) LARGE LUG
BLACK
RED
RED (+)
RED (+)
BLACK (–)
BLACK (–)
