C508GTi MkII
C608GTi MkII
PROFESSIONAL-GRADE AUTOMOTIVE
COMPONENT SPEAKER SYSTEM
OWNER’S MANUAL
G E N U I N E J B L
THE OFFICIAL BRAND
OF LIVE MUSIC.
WWW.JBL.COM
ABOUT THESE
INSTRUCTIONS
Installation of automotive stereo compo-
nents can require extensive experience
with a variety of mechanical and electrical
procedures. Although these instructions
explain how to install GTi component
systems in a general sense, they do not
show the exact installation methods for
your particular vehicle. If you do not feel
you have the experience, do not attempt
the installation yourself – instead, ask
your authorized JBL car audio dealer
about professional installation options.
LOUD MUSIC
AND HEARING
Playing loud music in an automobile can
hinder your ability to hear trac, as well
as permanently damage your hearing. The
maximum volume levels achievable with
JBL speakers, combined with high power
amplication, may exceed safe levels for
extended listening. We recommend using
low volume levels when driving. JBL
accepts no liability for hearing loss, bodily
injury or property damage as a result of
use or misuse of this product.
A NOTE ABOUT SYSTEM
PERFORMANCE
For the best performance possible, the
GTi components should be used with a
two-channel amplier with output power
of at least 50W RMS per channel. The
passive crossover contains impedance-
compensating circuitry and has been
computer-optimized for the attest
possible frequency response with the
tweeter ush-mounted, on-axis with
the listener. The combined responses
of the speakers and passive crossover
constitute a 4th-order Linkwitz-Reily
acoustic alignment and cannot be
duplicated with any electronic crossover
currently available for car audio use.
Consequently, bi-amping a GTi component
system with an electronic crossover is not
recommended.
SPEAKER PLACEMENT

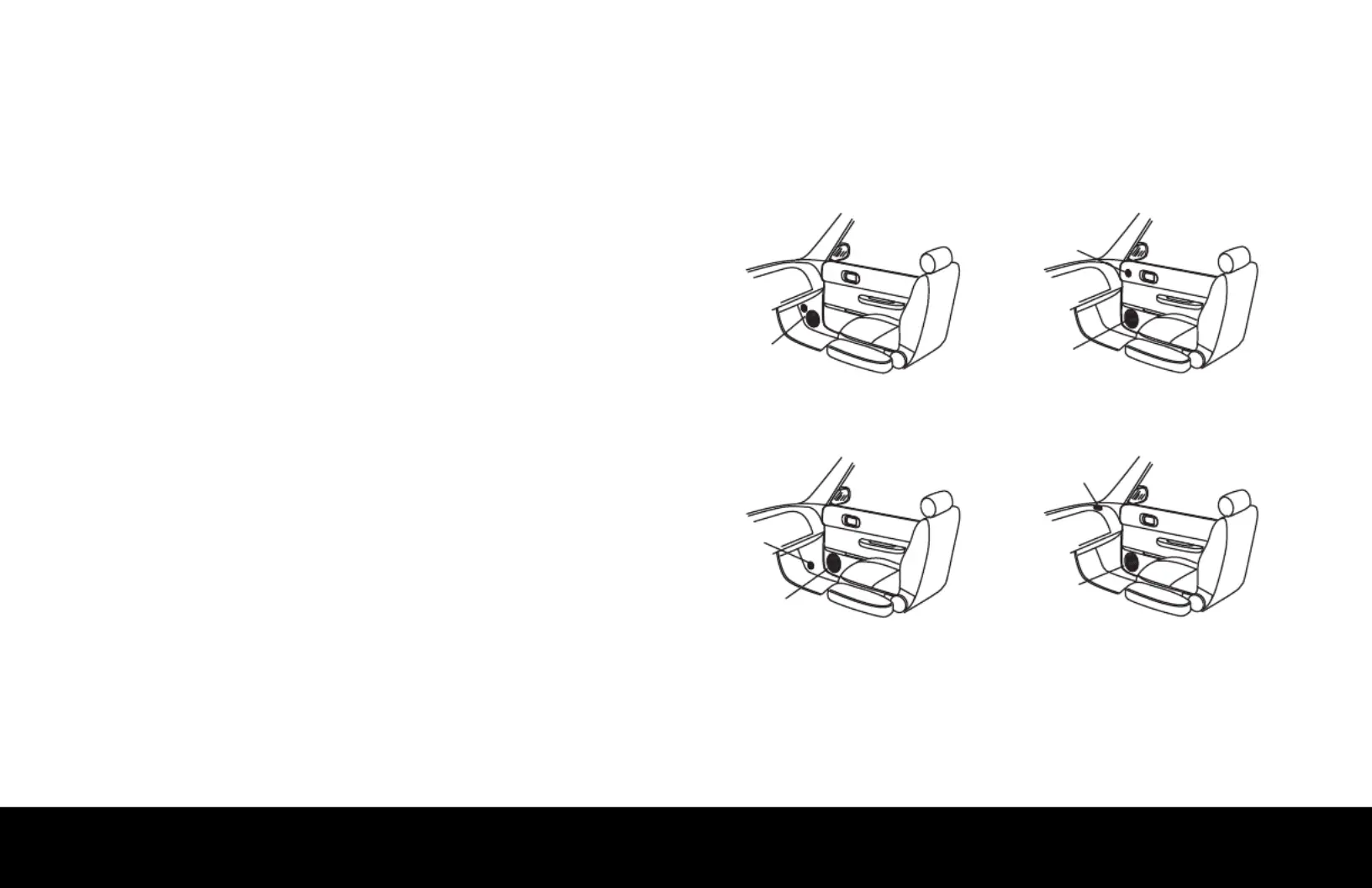

Figures 1–4 show possible speaker
placements in the order of most desirable
to least desirable. Kick-panel mounting
will provide the best staging and imaging
in most vehicles.
TWEETER
on dash
WOOFER
in factory-
door location
TWEETER
on kick panel
WOOFER
in factory-
door location
TWEETER
and
WOOFER
on kick panel
WOOFER
in factory-
door location
T WEETER
in high/forward
l ocation on door
Figure 1. Mounting the woofer and
tweeter in the kick panels
Figure 2. Mounting the woofer in the
door and the tweeter in the kick panel
Figure 3. Mounting the woofer and
tweeter in the doors
Figure 4. Mounting the woofer in the
door and the tweeter in the dash
2

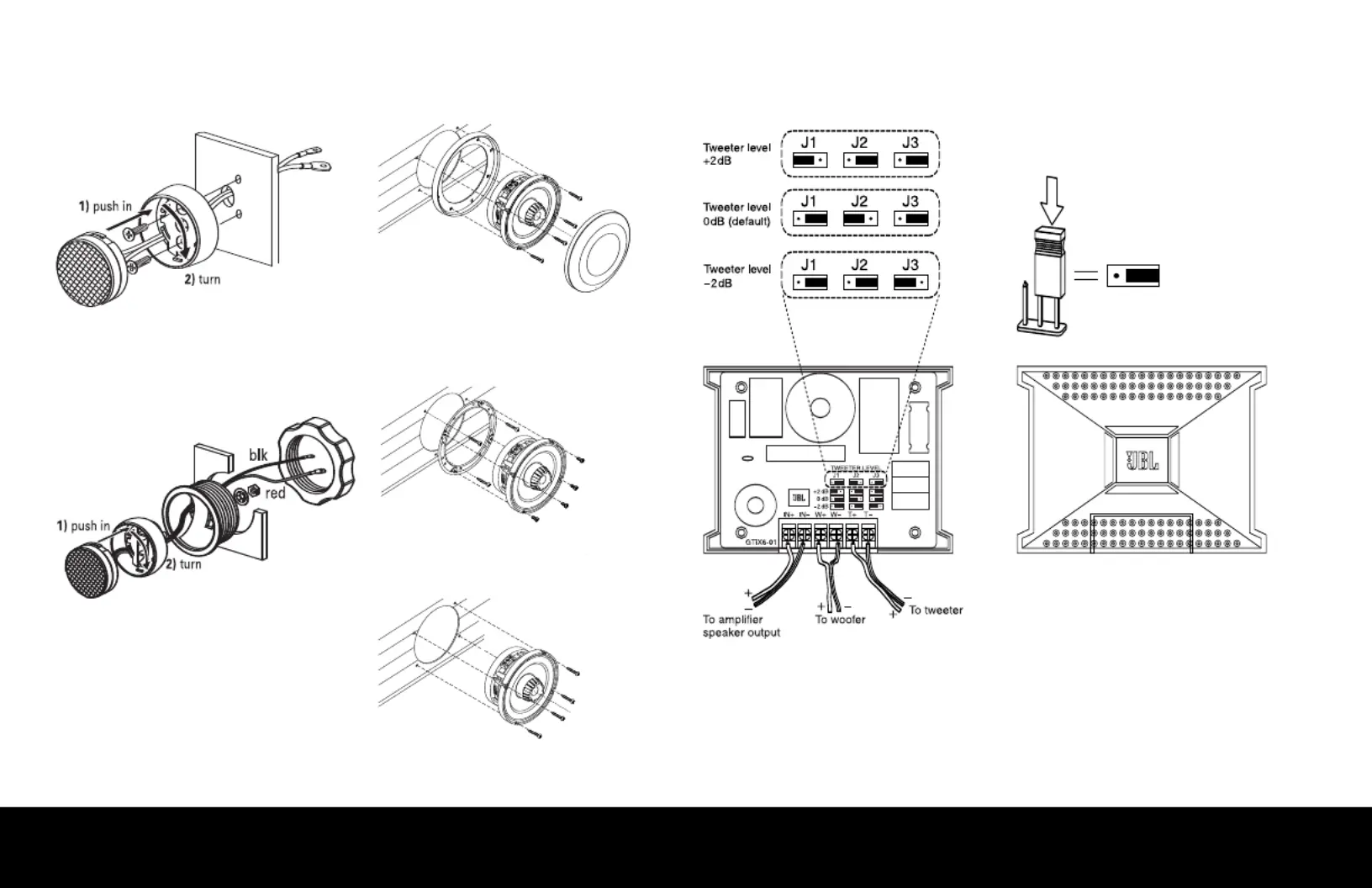

INSTALLATION WARNINGS AND TIPS
–
+
–
+
Figure 5. Surface-mounting the tweeter:
rst push in (1), then turn (2)
Figure 6. Flush-mounting the tweeter:
rst push in (1), then turn (2)
WOOFER INSTALLATIONTWEETER INSTALLATION
Figure 7. Mounting the C508GTi or C608GTi
woofer where there is no factory speaker
location. To mount the C508GTi in factory
locations, omit the grille and grille tray.
Figure 8. Mounting the C608GTi woofer in
standard 5-1/4" holes (in many Japanese
and American automobiles)
Figure 9. Mounting the C608GTi woofer
in 165mm holes (in many European and
American automobiles)
ELECTRICAL CONNECTIONS AND CROSSOVER ADJUSTMENTS
Figure 10. Connecting the speakers and
the amplier to the crossover
Figure 11. Adjust the crossover using the
jumpers provided
3
INSTALLATION
