Pagina 1/5

HDMI HDBaseT Extender over single Cat5e/6/7- 100m

User manual

Thank you for purchasing this product. For optimum performance and safety, please read the instructions carefully

and keep the manual for future reference.

Please read below safety instructions carefully before installation and operation:

 Please pay attention to all the warnings and hints on this device.

 Do not expose this unit to rain, moisture and liquid.

 Do not put any stuff into the device.

 Do not repair or open this device without professional people’s guidance.

 Make sure good ventilation openings to avoid product overheating damage.

 Shut off power and make sure environment is safe before installation.

 Do not plug-in/out the connected cables when it is in using.

 Make sure the specification matched if using 3rd party DC adapters.

1.Introduction

This HDBaseT single network cable extender transmits HDMI signal up to 100meters over cat6 fluently and clearly.

It is lossless in signal and supports 3D, 24bits deep color, 4kx2k, CEC and HDCP.

2.Features

1. Apply HDBaseT extend technology

2.Uncompressed HDMI video signal

3. Support full HD 1080P@60Hz, 3d, 4kx2k@60Hz

4. Extend 1080p signal over cat6a up to 100 meters

5. Support bi-directional IR pass back

6. support HDCP ,CEC, 24 deep color

7. Support uncompressed LPCM audio and compressed DTS-HD, Dolby True HD

8. Can be powered by network cable. It only needs to input 12V power for either transmitter or receiver for

normal working.

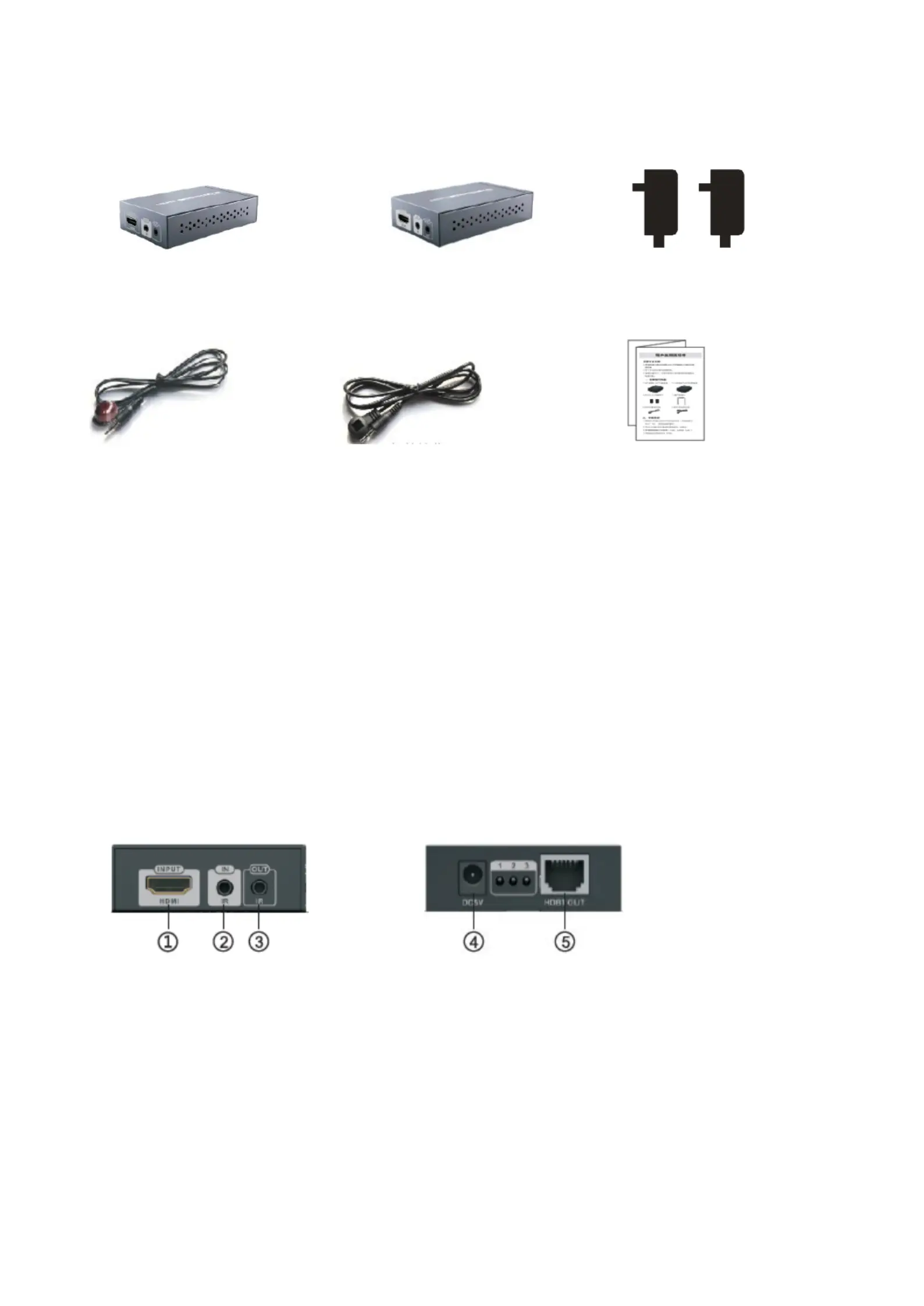

3.Package contents

HDMI to HDBaseT TX sender*1pcs HDMI to HDBaseT TX sender*1pcs DC12V/3A *1pcs

IR blaster extension cable*1pcs IR receiver extension cable*1pcs User manual*1pcs

4. Installation Requirements

3.1. HDMI source devices: with HDMI OUTPUT interface, DVD, PS3, STB, PC etc.

3.2. Display devices With HDMI INPUT port, SDTV, HDTV, projector：

3.3. Network cables：

UTP/STP Cat5e/Cat6/Cat6A/Cat7 network cables, which following the standard of IEEE- 568B.

5.Panel description

5.1 HDMI to HDBaseT TX Sender

1 HDMI IN:HDMI signal input to connect with HDMI source device.

2 IR IN:IR signal input to connect with IR receiver extension cable.

3 IR OUT:IR signal output to connect with IR blaster extension cable.

4 DC12V:Power input

5 HDBT OUT:HDBaseT signal output

5.2 HDBaseT to HDMI RX Receiver

1 DC12V:Power input

2 HDBT IN:HDBaseT signal input

3 HDMI OUT:HDMI signal output to connect with HDMI display device.

4 IR IN:IR signal input to connect with IR receiver extension cable.

5 IR OUT:IR signal output to connect with IR blaster extension cable.

1. LED indicators working status

1 It is lighting on with power on

2 When the sender connect the receiver working normal,the No2 lamp flashing status,and when input

signal transmission normal the lighting keeps on.

3 It is lighting on when RX and display are well connected.

5.Installation procedures

5.1To make a Cat5e/6 network cable

Follow the standard of IEEE-568B:

5.2 Connections

white and orange

7 blue white and brown

orange

e 8 white and blu brown

white and green

green

Product specificaties

Merk:	HELGI
Categorie:	AV extender
Model:	HI0375-100
Kleur van het product:	Zwart
Soort:	AV-zender & ontvanger
Gebruikershandleiding:	Ja
LED-indicatoren:	Ja
Type verpakking:	Doos
Stroom:	2 A
Connectiviteitstechnologie:	Bedraad
Ethernet LAN:	Ja
Ondersteunde video-modi:	480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 1440p, 2160p
Maximum resolutie:	3840 x 2160 Pixels
Audiosysteem:	Stereo
Inclusief AC-adapter:	Ja
Maximale refresh snelheid:	60 Hz
Materiaal:	Metaal
Power over Ethernet (PoE):	Ja
RJ-45 uitgang ports:	1
Receiver afmetingen (B x D x H):	66.5 x 98.5 x 23 mm
RJ-45 invoer ports:	1
Maximaal bereik:	100 m
AC-ingangsspanning:	12 V
Stroomverbruik (typisch):	8 W
Receiver gewicht:	107 g
Transmitter afmetingen (WxDxH):	66.5 x 98.5 x 23 mm
Transmitter gewicht:	79 g
Ondersteundende kabel types:	Cat5e, Cat6, Cat6a, Cat7
Inclusief IR-versterker:	Ja
Inclusief IR-ontvanger:	Ja
