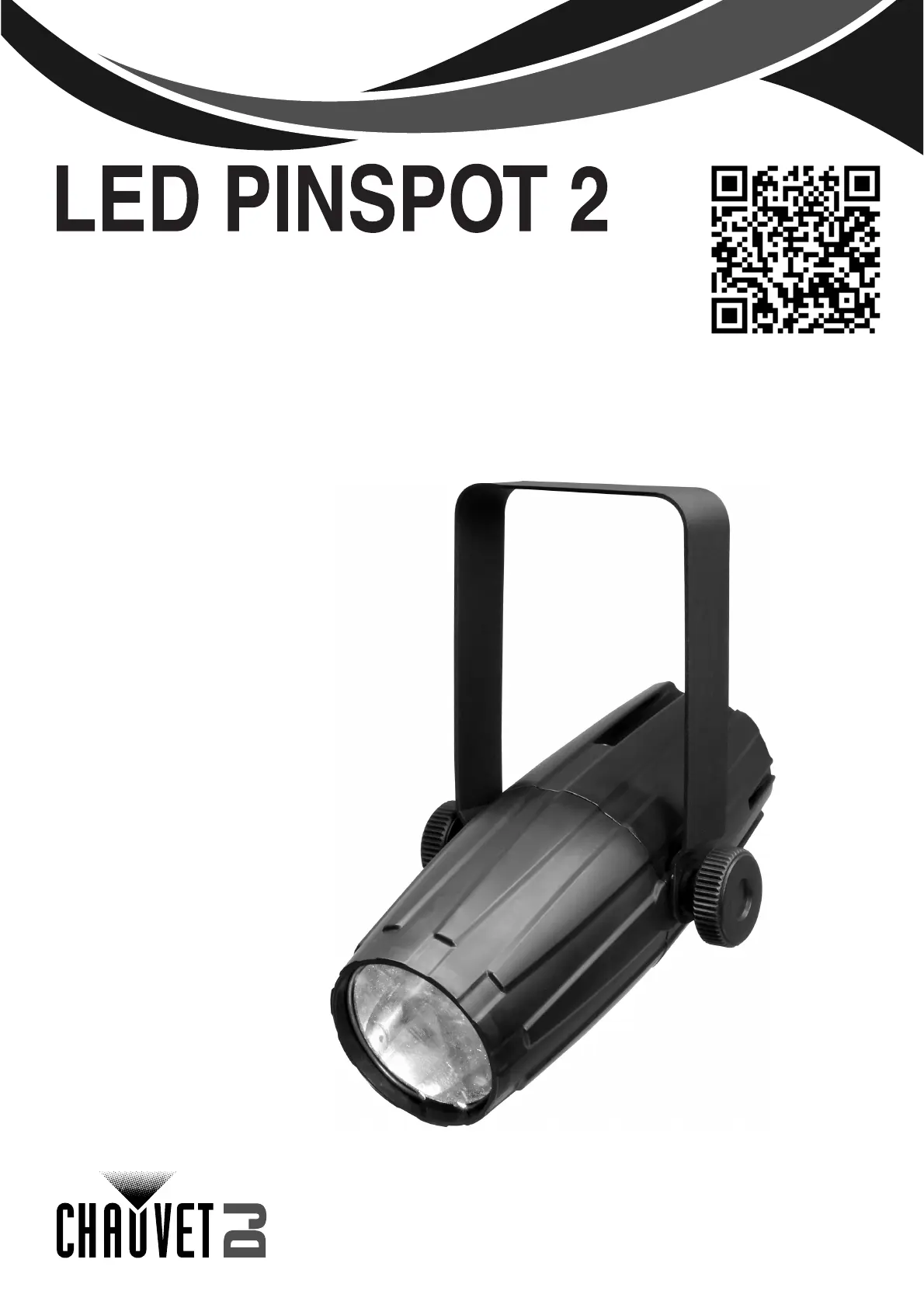

Quick Reference Guide
1
EN
QUICK REFERENCE GUIDE
LED Pinspot 2 QRG Rev. 2
About This Guide
The LED Pinspot 2 Quick Reference Guide (QRG) has basic product information such as mounting and technical
specifications.
Disclaimer
The information and specifications contained in this QRG are subject to change without notice.
LIMITED WARRANTY
FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.
For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.
For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and
Germany: www.chauvetlighting.eu/warranty-registration.
Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the
period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This
warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this
warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows
the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This
warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to
country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands,
Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.
Safety Notes
These Safety Notes include important information about installation, use, and maintenance.
Contact
Outside the U.S., United Kingdom, Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request
support or return a product. Visit www.chauvetdj.com for contact information.
What is Included
• LED Pinspot 2
• Extra Lens
• Set of Four Colored Gels
• Hanging Bracket
• Quick Reference Guide
To Begin
Unpack your LED Pinspot 2 and make sure you have received all parts in good condition. If the box or contents appear
damaged, notify the carrier immediately, not Chauvet.
AC Power
This product has an auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50/60 Hz.
• ONLY connect this product to a grounded and protected circuit.
• DISCONNECT from power before cleaning.
• DO NOT look at the light source when the product is on.
• Make sure the power cord is not crimped or damaged.
• Never disconnect this product from power by pulling on the cord.
• When mounting this product overhead, ALWAYS use a safety cable.
• DO NOT allow flammable materials close to the product when it is operating.
• DO NOT touch the product’s housing when it is on because it will be hot.
• The voltage of the outlet to which you are connecting this product must be within the range stated on the
decal or rear panel of the product.
• This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to
rain or moisture.
• Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent
surfaces.
• Be sure that no ventilation slots on the unit’s housing are blocked.
• Never connect this product to a dimmer or rheostat.
• Never carry the product by the power cord. Use only the mounting bracket to carry this product.
• The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher temperatures.
• In the event of a serious operating problem, stop using immediately.
• DO NOT open this product. It contains no user-serviceable parts.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect
the product from power via breaker or by unplugging it.
To eliminate wear and improve its lifespan, during periods of disuse completely disconnect the
product from power via breaker or by unplugging it.
EN
2
LED Pinspot 2 QRG Rev. 2
QUICK REFERENCE GUIDE
Product Dimensions
Mounting
Before mounting this product, read the Safety Notes.
Mounting Diagram
Lens Replacement
If the retainer ring is not installed correctly, the lens will fall out. This creates a safety hazard for
overhead mounting.
7.87 in
200 mm
5.9 in
150 mm
4.33 in
110 mm
Safety Cable
(such as CH-05 from Chauvet)
Mounting Clamp
(such as CLP-15N from Chauvet)
Mounting Bracket
Bracket Adjustment Knob
Lens
(5° installed, 9° included)
Color Gel
Retainer Ring
(Remove to access
lens and color gel.
MUST be
reinstalled properly.)
Product specificaties
| Merk: | Chauvet |
| Categorie: | Effect machine |
| Model: | LED Pinspot 2 |
