Your AdderLink LPV package

The AdderLink LPV allows you to extend analogue video over a maximum of 150 metres of

twisted pair cable with the minimum of infrastructure and fuss. It is simply powered via USB from

the transmitter end, so that no additional power supply is required at the receiver, hence the

name LPV or Line Powered Video.

In addition to this brief guide, your package should contain the following:

Supplied items

Adder Technology Limited,

Technology House,

Trafalgar Way,

Cambridge, CB23 8SQ,

United Kingdom

Tel: +44 (0)1954 780044

Fax: +44 (0)1954 780081

AdderLink LPV

User Guide

support@adder.com

www.adder.com

All trademarks are acknowledged.

Adder Corporation,

350R Merrimac Street,

Newburyport,

MA 01950,

United States of America

Tel: +1-888-932-3337

Fax: +1-888-275-1117

Warranty

Adder Technology Ltd warrants that this product shall be free from defects in workmanship and

materials for a period of two years from the date of original purchase. If the product should fail to

operate correctly in normal use during the warranty period, Adder will replace or repair it free of

charge. No liability can be accepted for damage due to misuse or circumstances outside Adder’s

control. Also, Adder will not be responsible for any loss, damage or injury arising directly or indi-

rectly from the use of this product. Adder’s total liability under the terms of this warranty shall in

all circumstances be limited to the replacement value of this product.

Regulatory information

European EMC directive 89/336/EEC

This equipment has been tested and found to comply with the limits for a class A

computing device in accordance with the speciﬁcations in the European standard

EN55022. These limits are designed to provide reasonable protection against harmful

interference. This equipment generates, uses and can radiate radio frequency energy and if not

installed and used in accordance with the instructions may cause harmful interference to radio or

television reception. However, there is no guarantee that harmful interference will not occur in a

particular installation. If this equipment does cause interference to radio or television reception,

which can be determined by turning the equipment on and off, the user is encouraged to correct

the interference with one or more of the following measures: (a) Reorient or relocate the receiv-

ing antenna. (b) Increase the separation between the equipment and the receiver. (c) Connect

the equipment to an outlet on a circuit different from that to which the receiver is connected. (d)

Consult the supplier or an experienced radio/TV technician for help.

FCC compliance statement (United States)

This equipment generates, uses and can radiate radio frequency energy and if not installed

and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause

interference to radio communications. It has been tested and found to comply with the limits for

a Class A computing device in accordance with the speciﬁcations in Subpart J of part 15 of FCC

rules, which are designed to provide reasonable protection against such interference when the

equipment is operated in a commercial environment. Operation of this equipment in a residential

area may cause interference, in which case the user at his own expense will be required to take

whatever measures may be necessary to correct the interference. Changes or modiﬁcations not

expressly approved by the manufacturer could void the user’s authority to operate the equipment.

Adder Asia Paciﬁc,

6 New Industrial Road,

Hoe Huat Industrial Building

#07-01,

Singapore 536199

Tel: +65 6288 5767

Fax: +65 6284 1150

What you may additionally need

PSU-LPV-KIT

External power

adapter and USB

adapter cable

This power kit is only required if the host

computer or other device with a USB

port cannot provide sufﬁcient power.

Safety information

• For use in dry, oil free indoor environments.

• Ensure that the twisted pair interconnect

cable is installed in compliance with all ap-

plicable wiring regulations.

• Do not connect the interconnect cable to

any other equipment, particularly network

or telecommunications equipment.

• Do not attempt to service the units yourself.

Local unit

Remote unit

ALPV150P package includes: 1 local unit and 1 remote unit

ALPV150T package includes: 1 local unit only

ALPV150R package includes: 1 remote unit only

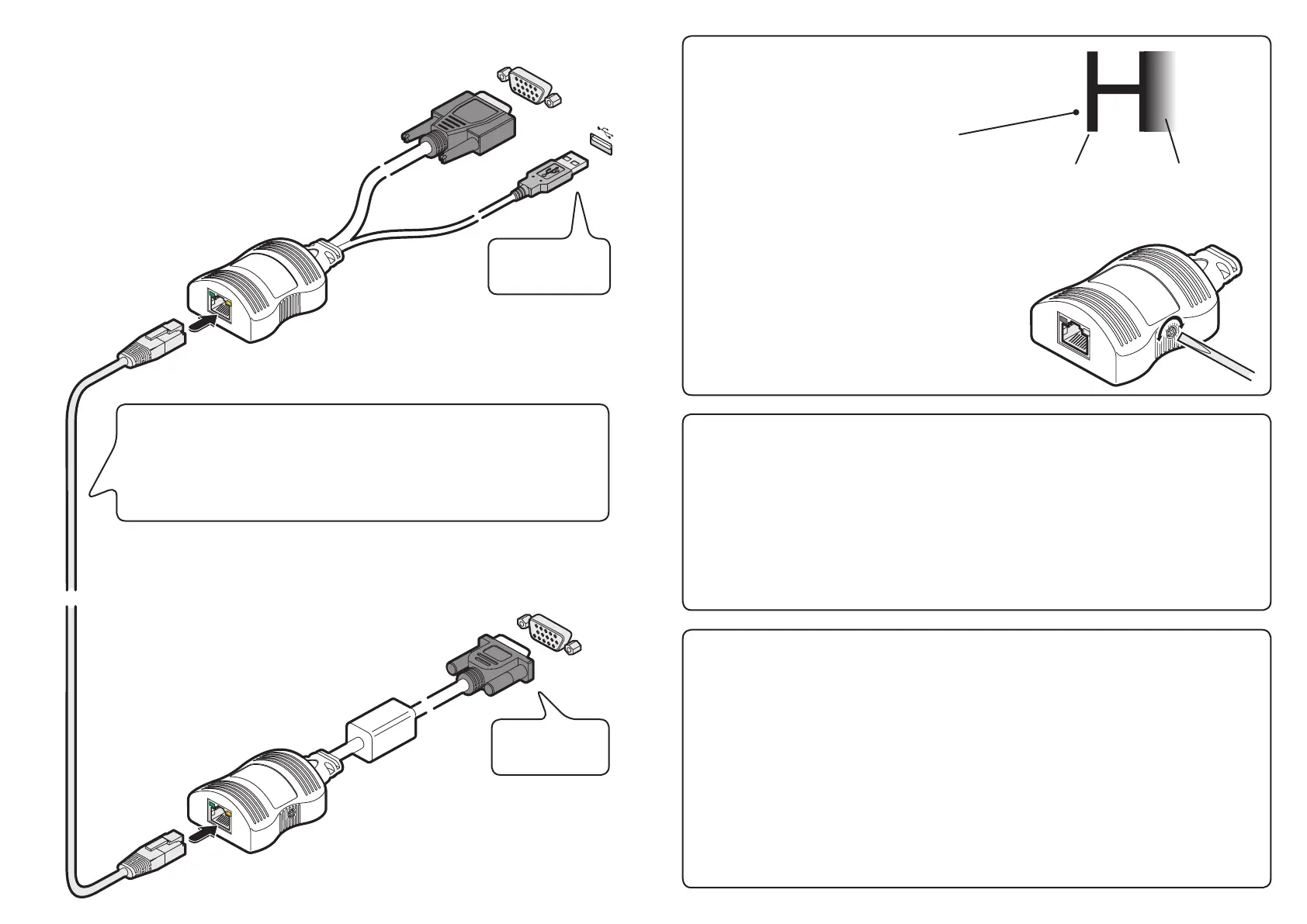

Connecting your AdderLink LPV

DDC information

DDC information is not sent from the remote unit. Instead, the local unit holds a standard set

of DDC details which are suitable for most display screens. If the standard details are not suit-

able, temporarily connect the local unit directly to the display screen that is to be emulated and

power on the screen. Note: The local unit must be powered via its USB connection.

If the DDC information is different to that already held, the yellow indicator will ﬂicker rapidly

for 2 to 3 seconds while the new information is stored.

If a problem occurs while attempting to harvest DDC information, the yellow indicator on the

local unit will show a number of distinct ﬂashes. Note the number of ﬂashes in case you need

to contact technical support, but otherwise retry the procedure.

Power control

IMPORTANT: Do not connect the local unit, via the CATx cable, to anything other than the

remote unit.

Low voltage power for the remote unit is fed via one of the pairs within the cable. The local

unit always performs a check before applying power, which is shown by ﬂashing the yellow

indicator. When power is applied, the yellow indicator will remain on.

The local unit will disable the power and begin ﬂashing its yellow indicator if:

• The cable is disconnected

• Line power is overloaded

If the host computer goes into standby (turns off the display screen by disabling sync pulses, as

is usually the case) the local unit will disable line power and go into a low power mode after a

period of approximately 16 seconds. It will not attempt to check the line or turn power back

on. The yellow indicator will remain off until video input is restored.

Local unit

1 Connect the plugs to the video output

and a vacant USB port on the computer.

Note: The USB connection provides only

power for the units.

2 Attach one end of the link cable to the

socket at the end of the unit.

Remote unit

1 Connect the video plug to the socket

on the display screen.

2 Attach the other end of the link cable

to the socket at the end of the unit.

IMPORTANT:

• Use only screened (FTP) cable to connect the two units. For cable runs greater

than 50m, low skew cable may also be required to avoid colour fringing ef-

fects within the video image.

• Do not connect the local unit, via CATx cable, to anything other than the remote

unit.

Video and USB

connections to the

host computer

Video connection

to the display

screen

Video sharpness adjustment

The remote module has a video adjustment to

control picture sharpness on the display screen.

To adjust video sharpness

1 On the computer, display a suitable high

contrast image (ideally with one or more black

vertical lines on a white background (e.g. a

capital 'H' at 72 points in a word processor).

2 Insert a small screwdriver into the adjustment

screw on the side of the remote module.

3 Turn the screw fully clockwise - you should see

a bright white shadow to the right of your high

contrast image

4 Turn the screw anti-clockwise until the white

shadow disappears and the edges of your im-

age become sharp.

High contrast

black character on

white background

Black or bright white

shadow on the right

indicates the need for

sharpness adjustment

Note: The default DDC data held within the unit supports a range

of common video resolutions. However, some graphics adapters

will choose the highest declared resolution and then scale their

video output to suit, which can result in poor image qual-

ity. If you experience poor quality video, follow the

instructions in the 'DDC information' section to

harvest DDC data from your display screen.

Product specificaties

Merk:	Adder
Categorie:	Schakelaar
Model:	LPV150
Soort:	Zender
Connectiviteitstechnologie:	Bedraad
Certificering:	CE, FCC
Resolutie (maximum digitaal):	1920 x 1080 Pixels
Maximaal bereik:	150 m
Bedrijfstemperatuur (T-T):	0 - 40 °C
Zender breedte:	45 mm
Zender diepte:	63 mm
Zender hoogte:	21 mm
Poorttype zender video:	VGA
Aantal RJ-45-poorten (zender):	1
