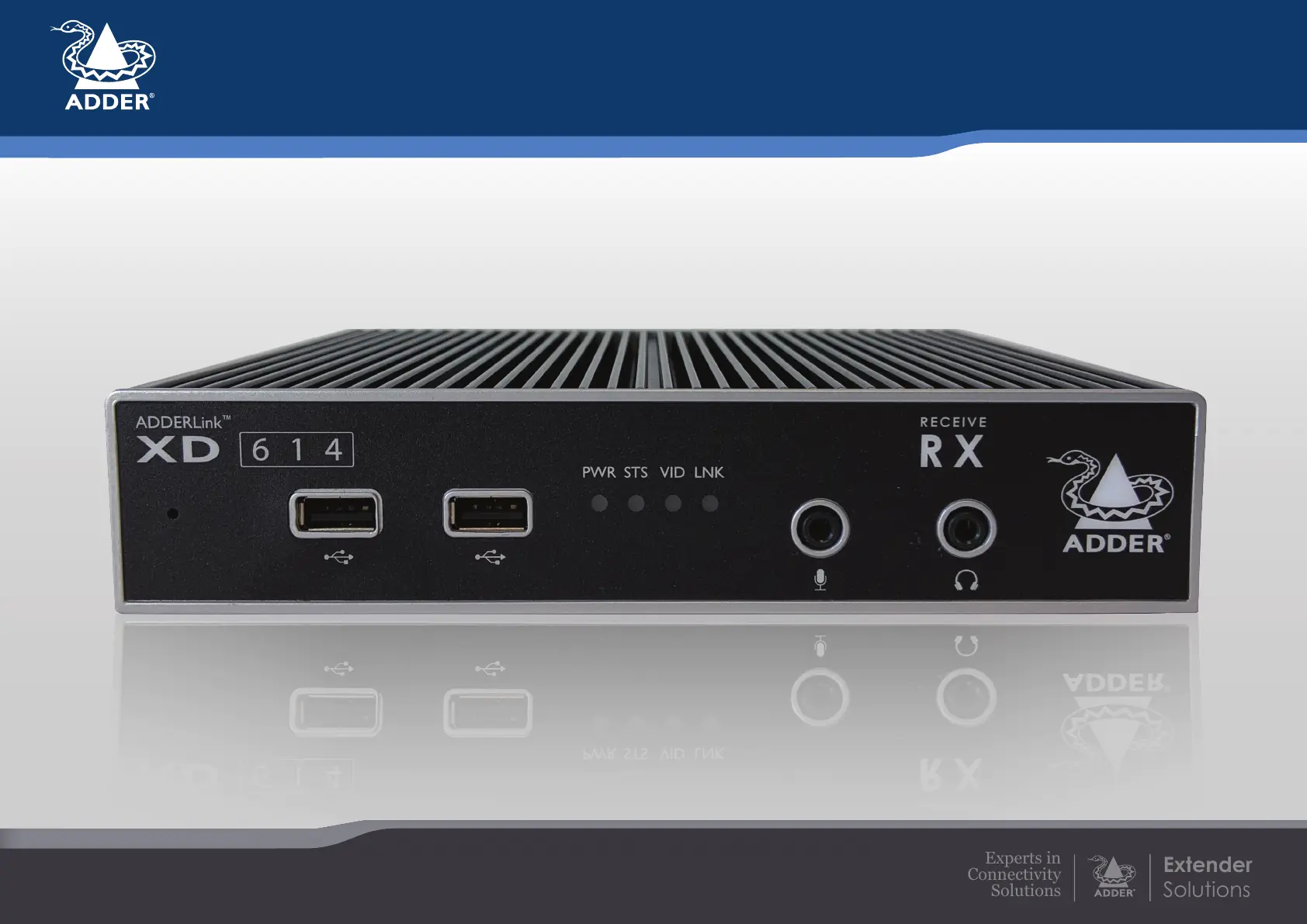

ADDERLink™ XD612 and XD614

User Guide

INSTALLATION

CONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

Introduction

Welcome 2 ................................................................................................................

CATx Link Cable Recommendations 3 ........................................................

Multi-display support using MST 4 .......................................................................

AdderLink XD612 features 6 ................................................................................

AdderLink XD614 features 7 ................................................................................

Technical specications .......................................................................................8

Supplied items 9 .......................................................................................................

Optional extras 10 ...................................................................................................

Installation

Locations 11 ..............................................................................................................

Connections 11 ........................................................................................................

Transmitter video link(s).............................................................................12

Transmitter audio links 12 ...............................................................................

Transmitter USB links 13 ..................................................................................

Transmitter Remote port 13 ...........................................................................

Transmitter power connection 14 .................................................................

Linking 15 .............................................................................................................

CATx link 15 .......................................................................................................

Fiber optic link 16 ..............................................................................................

Receiver video display(s) 17 ............................................................................

EDID management 17 .................................................................................

Receiver audio devices 17 ................................................................................

Receiver USB devices 18 ..................................................................................

Receiver Remote port 18 ................................................................................

Receiver power connection 19 .......................................................................

Conguration

Accessing the Dashboard 20 .................................................................................

Choosing RX video mode (XD614 models only).......................................20

Resetting a module 21 ............................................................................................

Upgrading Firmware 21 ..........................................................................................

Operation

Indicators 22 .............................................................................................................

Further information

Getting assistance 23 ..............................................................................................

Appendix 1 - Remote port pin-out 24 ................................................................

Index

Contents

INSTALLATION

CONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

ADDERLink XD

Transmitter

module

ADDERLink XD

Receiver

module

Fiber optic link

(up to 4km)

CATx link

(CAT5e up to 50m)

(CAT6 up to 100m)

ADDERLink

™

PWR STS VID LNK

R X

RE C E I V E

ADDERLink

™

PWR

LINK

STS VID LNK

T X

TRANSMIT

Introduction

WELCOME

Thank you for choosing the ADDERLink® XD612 (dual head) or XD614 (quad head)

extender modules. Using either ber optic or CATx links, these compact modules

allow you to extend KVM connections over long distances from a host computer (see

Transmission distances when using ber on the right).

The high-grade screening employed within the metal cased enclosures, particularly when

combined with the immunity from interference of the ber optic links.

AdderLink XD61x extender modules provide support for:

• High quality single-, dual-, triple- or quad- digital video

• Video resolutions up to 4K 4096 x 2160 @60Hz (XD614 models),

• USB keyboard and mouse plus two other USB devices (up to USB 2.0),

• An RS232 serial device at speeds up to 115200 baud,

• Mono microphone,

• Stereo speakers, digital stereo audio out

• Line-level audio in/out connections.

Transmission distances when using ber

The choice of ber used with the ADDERLink XD61x modules has a considerable effect

on the distance over which operation can take place. Using multi-mode ber you can

achieve distances up to 400m (1,312 feet); whereas, by using single-mode ber (and

accompanying SFP+ modules), the achievable maximum distance is increased to 4km (2.5

miles):

Distance Fibertype Fibercolorcode SFP+module

70m OM1 (TIA-492AAAA) Orange SFP-MM-LC-10G

150m OM2 (TIA-492AAAB) Orange SFP-MM-LC-10G

380m OM3 (TIA-492AAAC) Aqua SFP-MM-LC-10G

400m OM4 (TIA-492AAAC) Aqua SFP-MM-LC-10G

4km OS1 (TIA-492C000) Yellow SFP-SM-LC-10G

OS2 (TIA-492E000) Yellow SFP-SM-LC-10G

The ADDERLink extender modules are

totally transparent in operation, leaving you

free to use your computer as though you’re

still sitting next to it.

SFP+

module

Fiber

color

Up to 4 DisplayPort® video displays (see page 4)

Four USB devices

One RS232 serial device

Stereo speakers plus microphone

Product specificaties

Merk:	Adder
Categorie:	Schakelaar
Model:	Link XD614
Kleur van het product:	Zwart
Soort:	Zender en ontvanger
Connectiviteitstechnologie:	Bedraad
Inclusief AC-adapter:	Ja
Aantal USB 2.0-poorten:	6
PC audio ingang:	Ja
PC Audio-uitgang:	Ja
Certificering:	CE, FCC
Materiaal:	Metaal
Resolutie (maximum digitaal):	1920 x 1200 Pixels
Plug and play:	Ja
Kleurdiepte:	8 Bit
RJ-11 ports kwantiteit:	2
Temperatuur bij opslag:	-10 - 50 °C
AC-adapter, uitgangsstroom:	12 A
RJ-45 ports hoeveelheid:	2
Maximaal bereik:	4000 m
AC-ingangsspanning:	100 - 240 V
AC-ingangsfrequentie:	47 - 63 Hz
Bedrijfstemperatuur (T-T):	0 - 40 °C
Relatieve vochtigheid in bedrijf (V-V):	0 - 80 procent
Code geharmoniseerd systeem (HS):	84733080
Zender breedte:	186 mm
Zender diepte:	148 mm
Zender hoogte:	39 mm
Receiver gewicht:	1240 g
Transmitter gewicht:	1290 g
Ondersteundende kabel types:	Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8.1, Fiber
Ondersteunende oplossingen:	4 heads at resolutions to a maximum of 1920x1200 60Hz
Receiver breedte:	186 mm
Diepte van de receiver:	148 mm
Receiver hoogte:	39 mm
Poorttype zender video:	DisplayPort
Poorttype zender lokaal toetsenbord/muis:	USB
Poorttype ontvanger lokale video:	DisplayPort
Aantal RJ-45-poorten (ontvanger):	1
Aantal RJ-45-poorten (zender):	1
