Adder Link X-DVI PRO Handleiding

Adder Schakelaar Link X-DVI PRO

Lees hieronder de 📖 handleiding in het Nederlandse voor Adder Link X-DVI PRO (32 pagina's) in de categorie Schakelaar. Deze handleiding was nuttig voor 13 personen en werd door 2 gebruikers gemiddeld met 4.5 sterren beoordeeld

Download PDF

Pagina 1/32

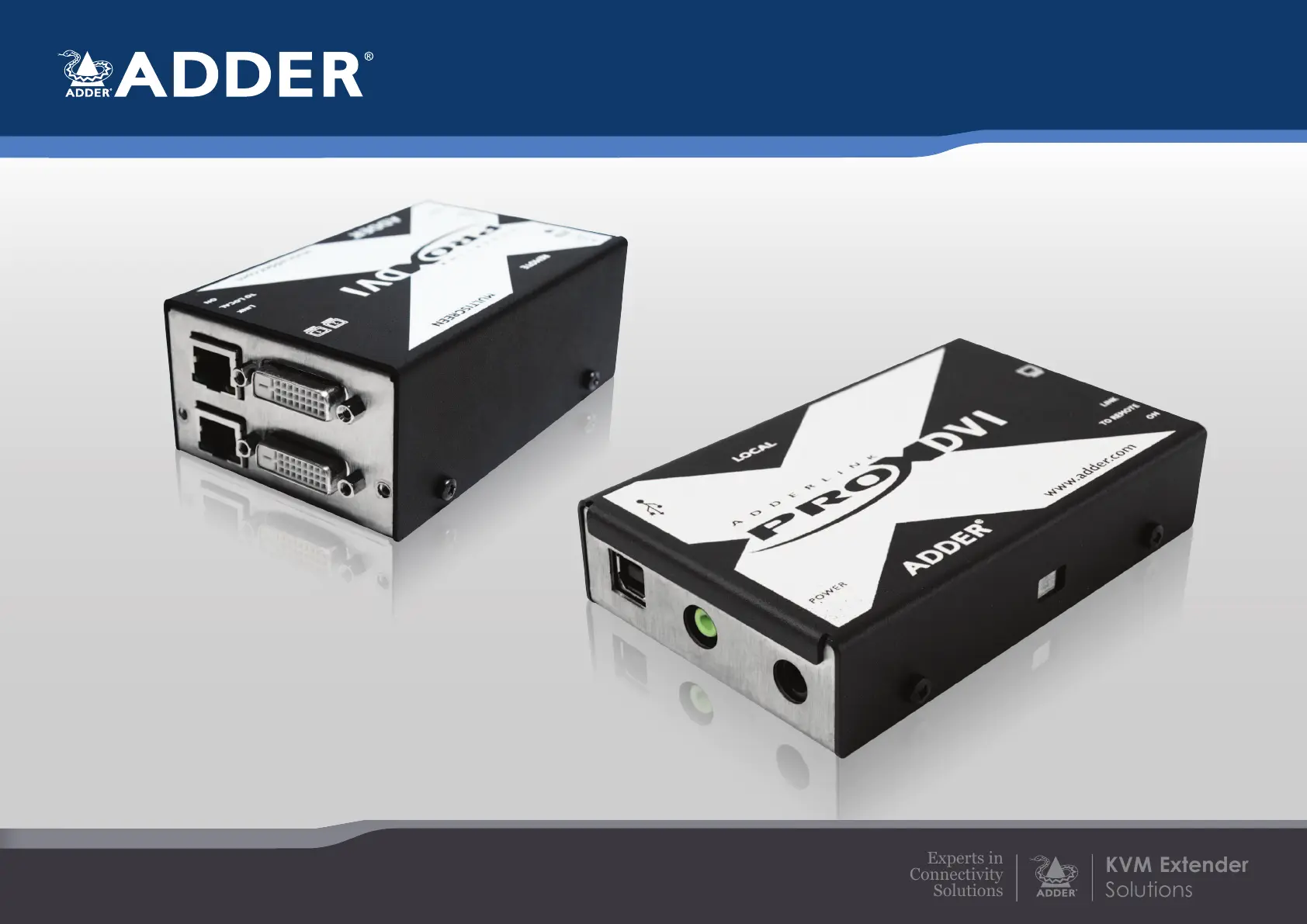

AdderLink X-DVIPRO X-DVIPRO-MS2&

User Guide

Experts in

Connectivity

Solutions

KVM Extender

Solutions

CONTENTSINTRODUCTIONINSTALLATIONOPERATION

FURTHER

INFORMATION

Introduction

Welcome 2 ................................................................................................................

Cable distance rules 2 .......................................................................................

Supplied items 3 .......................................................................................................

Optional extras 4 .....................................................................................................

Installation

Connections 5 ..........................................................................................................

Mounting the modules – desk or rack 5 ......................................................

Connections at the local module 6 ...............................................................

Optional power connection 7 ...................................................................

Connections at the remote module 8 ..........................................................

Power connection 10 ..................................................................................

Operation

General use 11 .........................................................................................................

Video display (EDID) information 11 ............................................................

HDMI 1.3a operation 11 ..................................................................................

Power and activity indicators 11 ....................................................................

Further information

Troubleshooting 12 ..................................................... .............................................

Getting assistance 13 ..............................................................................................

Warranty 14 ..............................................................................................................

Safety information 14 ..............................................................................................

Radio frequency energy 14 ....................................................................................

Contents

Product specificaties

Merk:	Adder
Categorie:	Schakelaar
Model:	Link X-DVI PRO
Kleur van het product:	Zwart
Soort:	Zender en ontvanger
Stroom:	0.4 A
Connectiviteitstechnologie:	Bedraad
Aantal USB 2.0-poorten:	5
Certificering:	CE, FCC
Materiaal:	Metaal
Resolutie (maximum digitaal):	1920 x 1200 Pixels
DVI-D poorten:	2
AC-adapter, uitgangsspanning:	5 V
Maximaal bereik:	50 m
AC-ingangsspanning:	100 - 240 V
AC-ingangsfrequentie:	50 - 60 Hz
Bedrijfstemperatuur (T-T):	0 - 40 °C
Code geharmoniseerd systeem (HS):	84733080
Zender breedte:	120 mm
Zender diepte:	75 mm
Zender hoogte:	26 mm
Receiver gewicht:	320 g
Transmitter gewicht:	320 g
Ondersteundende kabel types:	Cat5e, Cat6a, Cat7
Receiver breedte:	120 mm
Diepte van de receiver:	75 mm
Receiver hoogte:	26 mm
Poorttype zender video:	DVI-D
Poorttype ontvanger lokale video:	DVI-D
Poorttype ontvanger lokaal toetsenbord/muis:	USB
