Pagina 1/4

25/08/10-323099/167

WetSoundsInc.

1-877-938-7757

www.wetsounds.com

info@wetsounds.com

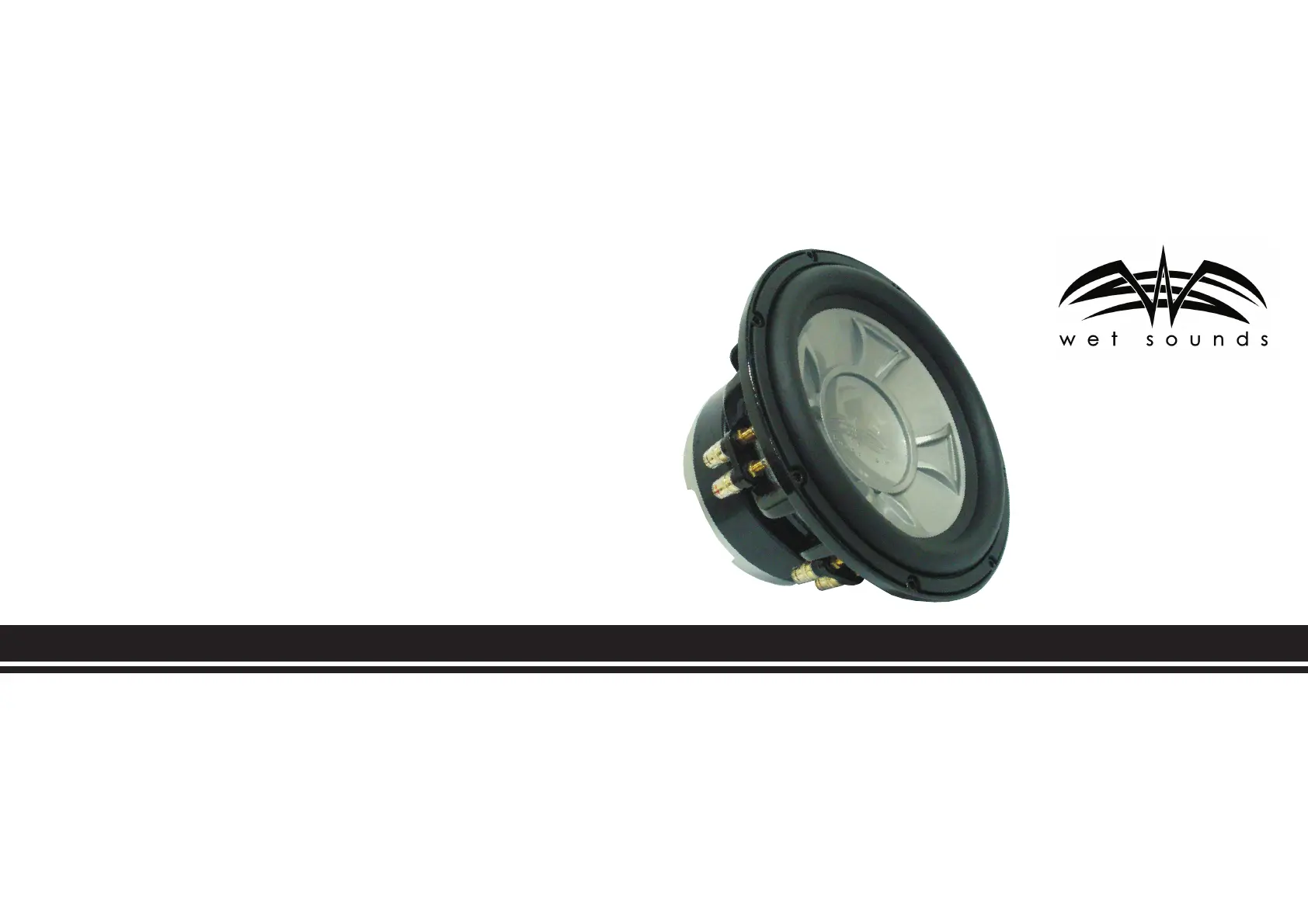

XS-XXXMarineSubwoofer

Owner’sManual

12inchmarinesubwoofer

impedance=Dual2ohms

Revc=0.95ohm

Znom=1.0ohm

Sd=0.053m2

Mmd=247g

PowerHandlingRMS/Max=750/1500W

Xmax=12mm

Krm=6.40mohm

Kxm=85.13mH

Erm=0.743

Mms=254g

Fo=32Hz

BL=11.4Tm

SPLo=90dB

Exm=0.484

Vas=38 l

Qms=7.99

Qts=0.36

Qes=0.38

Levc=0.93mH

Wet Sounds professional marine audio products represent the ultimate in high performance marine audio. Wet Sounds speakers are

specifically engineered to withstand the rigorous marine environment. The XS series of speakers were designed to provide amazing

output combined with a cutting edge style. Utilizing state of the art acoustic engineering and three dimensional computer aided

design, the XS series represent the most advanced marine speakers in the world. Please take a moment to read the instruction

manual before starting your installation. If you have any questions or concerns, please contact you certified Wet Sounds dealer or

Wet Sounds at 877-Wet-Spkr.

Thank YouforpurchasingthisWetSoundsproduct!

SPEAKERSPECIFICATIONS

The Wet Sounds XS series of subwoofers is a line of advanced

low frequency transducers. These subwoofers use advanced

materials throughout such as our exclusive rubber spider and

powder coated cast aluminum frames. Wet Sounds has

developed a rubber spider for the XS series of subwoofers.

Rubber is used for the spider as most marine speakers use cloth

that will deteriorate over time. The XS series speakers are built to

last in the harshest environments. The XS subwoofers utilize a

cast aluminum frame that is powder coated to provide a solid non

flexing mount. Advanced acoustical technologies like perimeter

venting, high temperature voice coils and gold plated binding

posts also help to make the XS series one of the most advance

marine subwoofers on the market.

LimitedWarranty

S-

WhatThisWarrantyCovers

HowLongCoverageLast

WhatIsNotCovered

WhatWetSounds,Inc.WillDo

HowtoObtainWarrantyService

InternetWarning

Thisisa“Limited”warranty.Thiswarrantycoversanydefectsinmaterialsandworkmanshipandwarrantyonlyappliestotheoriginalpurchaserandisnot

transferable.ThiswarrantyisalsoonlyvalidiftheoriginalpurchasewasmadefromanauthorizedWetSounds™dealer.

Thiswarrantyrunsforoneyearfromthedateofthepurchase.ItisrecommendedtoREGISTERyourwarrantyonlinewithin45daysofyourpurchaseat

www.wetsounds.com-clickon“warrantyregistration”

WetSounds,Incwillrepairanypartofyourproductthatprovestobedefectiveinmaterialsorworkmanship.Intheeventrepairisnotpossible,WetSounds,Inc

willreplacetheproductinquestion.IfitisdeemednecessaryWetSounds,Inc.willeitherreplacetheentireproductwitha refurbishedunitoritwillbe

replacedwithamodelthatissimilarinpriceifthatmodelisnolongeravailable.Laborcostandmaterialsneededtocompletethisservicewillbeatnochargeto

thepurchaser.Additionally,thecostofshippingTOtheconsumerisalsocoveredunderthiswarranty.

ContactWetSounds,Inc.eitherbyphoneat877-938-7757orbyemail atwarranty@wetsounds.com.Aservicerepresentativewillassistyouinthenecessary

actionstoverifythattheproblemthatyouareexperiencingiscoveredunderwarranty.Ifitisinfactawarrantyissue,WetSoundswillissueanRAnumberfor

trackingpurposesandgiveinstructionsonsendingtheproductinforevaluation.

WetSounds,Inc.productssoldonanynonauthorizedwebsiteorinternetauctionsitearevoidofanyandallmanufacturer'swarranty.PleasecontactWet

Sounds™at877-938-7757orvisitourwebsiteatwww.wetsounds.comtosearchforanauthorizedsiteand/oranauthorizedretailernearyou.

Thiswarrantydoesnotcoverfadingordiscolorationcausedbyexposuretosunlightorchemicalssuchasammonia,householdbleach,oranycleaningmaterialthat

containsabrasivesubstances.(Forinformationonhowtopreventfadingordiscoloration,consult forrecommendationsoncleaning

products) WetSounds,Inc.doesnotcoverthecostforremovalandreinstallationofanykind.Additionally,shippingTOWetSounds,Inc.iscoveredbythe

purchaser ThiswarrantyisvoidandinapplicableifWetSounds™deemsthattheproductwasabusedormisused;includingbutnotlimitedtoSpeakerproductthat

hasbeenimproperly-powered(underoroverpowered),causingthermal(burntvoicecoil)and/ormechanicalfailure(tornsurroundsorspiders),damagecausedby

accident,mishandling,improperinstallation,negligence,normalwearandtear,excessivewaterorheatdamage,freightdamageorproductsthathavebeenaltered

inanyway.ProductownedbyanyoneotherthantheoriginalpurchaserfromanauthorizedWetSoundsdealer.(Thewarrantyisnottransferableandwillnotapply

toproductspurchasedfromunauthorizeddealers.)WetSoundsisnotresponsibleforanydamagestoaconsumer'sboatorpersonfromaproductfailure.The

warrantyisvoidifWetSoundsdeemstheproductwasinstalledorusedimproperly.WetSoundsshallnotberesponsibleforanyincidentalorconsequential

damages,excepttotheextentprovided(orprohibited)byapplicablelaw.Thiswarrantygivesyouspecificlegalrights,andyoumay alsohaveotherrightswhich

varyfromstate.

newora

.

.

www.wetsounds.com

HOLETEMPLATE

XS-XXX

(0.25”)

(11.26”)

(12.20”)

6.5mm

286.0mm

310.0mm

45°

o

o

o

For best performance the walls of the enclosure should be rigid and not vibrate as a result of the internal pressures

generated by the loudspeakers. recommends constructing enclosures from medium-density fiberboard

(MDF) with a minimum thickness of 3/4”. In larger enclosures over 1 cubic foot, internal bracing that joins opposite walls

can be incorporated and the final enclosure should be as rigid as possible. All joints should be glued and fastened with

screws. Additionally, internal joints can be covered with a small bead of silicone adhesive to ensure that the enclosure is

completely air-tight. Drivers should be fastened to the enclosure with self-threading screws with adequate length and

diameter, utilizing all the mounting holes in the frame. To avoid air leakage, a foam rubber gasket or similar sealing

method should be applied between the loudspeaker and the enclosure. The external surface of the enclosure may be

painted or fabric-covered, to suit the consumer. Since low frequency sounds are not directional, subwoofer enclosures

can generally be placed anywhere within the boat, without compromising stereo imaging. However, different placement

locations of subwoofer enclosures can sometimes influence the overall quality of bass/midbass response, so you may

wish to experiment with various mounting locations before permanently mounting the woofer.

WET SOUNDS

Marine subwoofers are offered in Dual Voice Coil configuration 2+2 ohms. Voice coils can be wired in

parallel (Z = 1 ohm) or in series (Z = 4 ohms), allowing the user to properly match the driver to his amplifier.

WIRING

WET SOUNDS

seriesZ=4ohms parallelZ=1ohms

ENCLOSURECONSTRUCTION
