Pagina 1/10
Overview

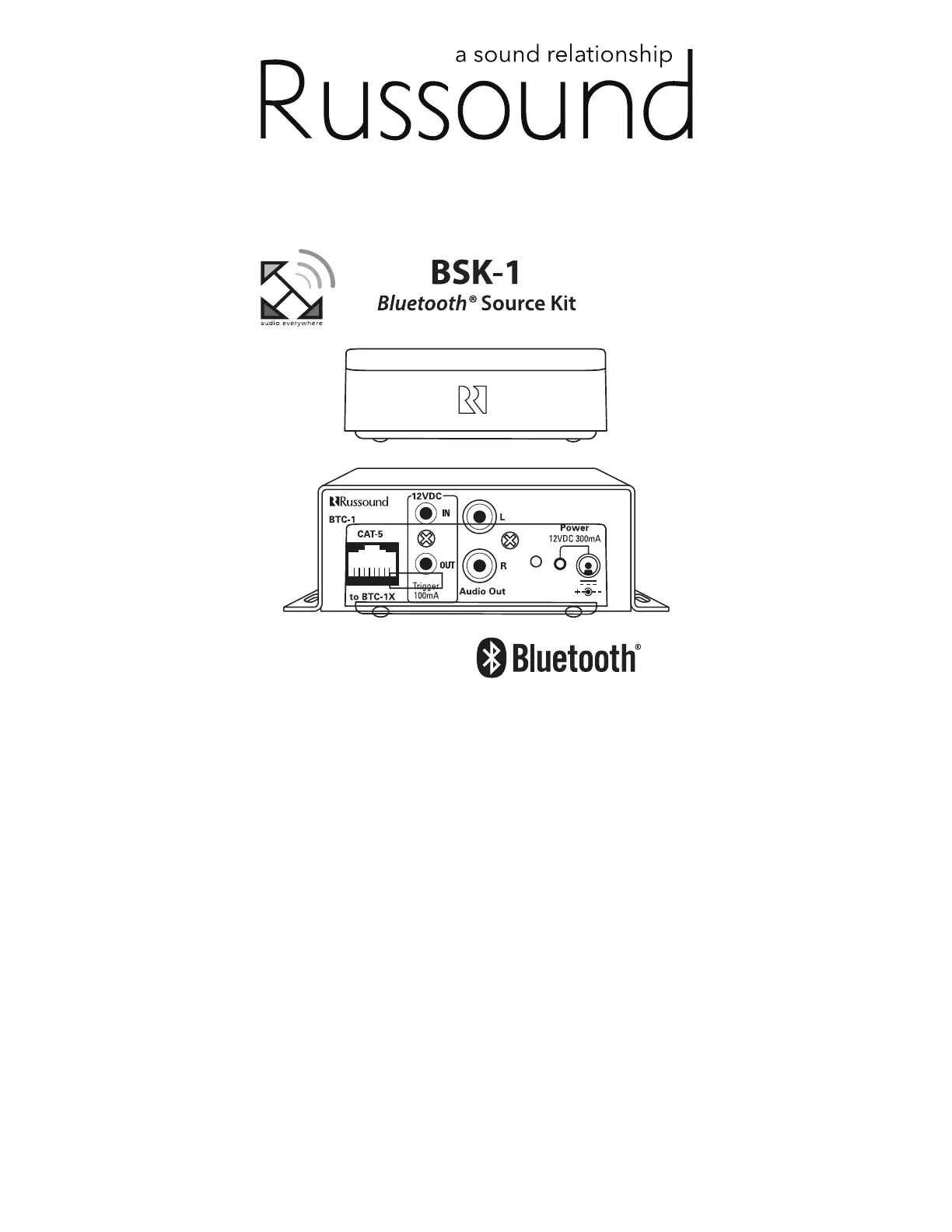

The BSK-1 Source Kit enables the user of a portable Bluetooth
media player, smartphone, or other equipped device Bluetooth
to wirelessly transmit audio content to any typical audio
system. The BTC-1X Remote Transceiver connects to the BTC-1
Termination Box via a single CAT-5 cable. The CAT-5 cable both
powers the transceiver and transmits audio signals from the
BTC-1 Termination Box which is then connected to any amplier
or receiver for audio and 12VDC trigger signals. On Russound
multiroom audio systems, it can be designated either as a
global source for the multiroom system or as a local source for
an individual "Primary Zone" with automatic control over zone
power, source selection and volume level.
The compact BTC-1X Remote Transceiver can sit on a at
surface or be placed in a standard electrical box in an ideal
location so that the user can connect and move throughout the
listening area without interrupting the audio stream. Housed in
a compact surface-mount metal box, the BTC-1 Termination Box
is connected directly to the amplier or receiver via RCA audio
patch cables and an optional 12VDC trigger cable.
Russound, Inc. 1 Forbes Rd., Newmarket, NH 03857, USA
tel 603.659.5170 • fax 603.659.5388 www.russound.com
e-mail: tech@russound.com
28-1369 09.14.20, Rev. 7
playback.
For Local Source congurations
The Local Source feature is designed for use when the
Primary Zone is in the O state and is not available if the
Primary Zone is already in use.
When an audio output signal from the BSK-1 is detected
by the MCA-Series controller, the Primary Zone will turn
on, select the BSK-1 source and set the zone's volume level
based on the settings made through WebCong software.
The volume on the source device should be at its highest
setting to assure the audio output level from the BSK-1 will
be strong enough to detect and activate the Local Source
feature. If the audio signal level is not strong enough
for the MCA-Series controller to detect, the local source
feature will not activate or, if already in use, will shut the
local source feature o after 10 minutes of no audio signal
detection.
For non-Local Source congurations
Turn on a zone and select the BSK-1 source input and
adjust the volume to the desired level. Audio from the
Bluetooth enabled source should be heard throughout the
zone.
Normal Use
Only one device at a time may be actively paired with
the BSK-1 in the multiroom system. Activate the Bluetooth
feature from the source device and connect or 'pair' with
the BSK-1 by selecting its assigned name. If being used as a
Local Source and the Primary Zone is in the O state, it will
automatically be turned on, select the BSK-1 source input
and volume level adjusted. Otherwise manually choose
your music and start playing. Choose the appropriate
source input on the Russound system and enjoy the music.
When nished, disconnect your device from the BSK-1 or
turn o the Bluetooth feature of the source device. If you
move your device out of range (15M without obstruction)
it will automatically sever the connection. If you are unable
to connect to the BSK-1, another device within range may
be connected.
