User Manual
High Definition VideoScope
Model HDV600
HDV600-en-GB_V2.9 8/16 2
Introduction
Congratulations on your purchase of this Extech HDV600 series Video Borescope. This instrument
is designed for use as a remote inspection device. It can be used to peer into tight spots, record and
playback real-time video and images. Typical applications include HVAC inspection, automotive
inspection, cable routing, and automotive/boat/aircraft inspection. The monitor is designed with dual
left or right handed controls for maximum flexibility and is available with a full line of accessories.
This meter is shipped fully tested and, with proper use, will provide years of reliable service.
Models and Descriptions:
HDV600 VideoScope (Monitor only)
HDV610 VideoScope w/1m flexible cable, 5.5mm diameter
HDV620 VideoScope w/1m semi-rigid cable, 5.8mm diameter
HDV640 VideoScope w/1m Articulating semi-rigid cable, 6mm diameter
HDV640W VideoScope w/1m Wireless Articulating semi-rigid cable, 6mm diameter
Note: Additional probe lengths and configurations are available. A list is available at the end of this
guide.

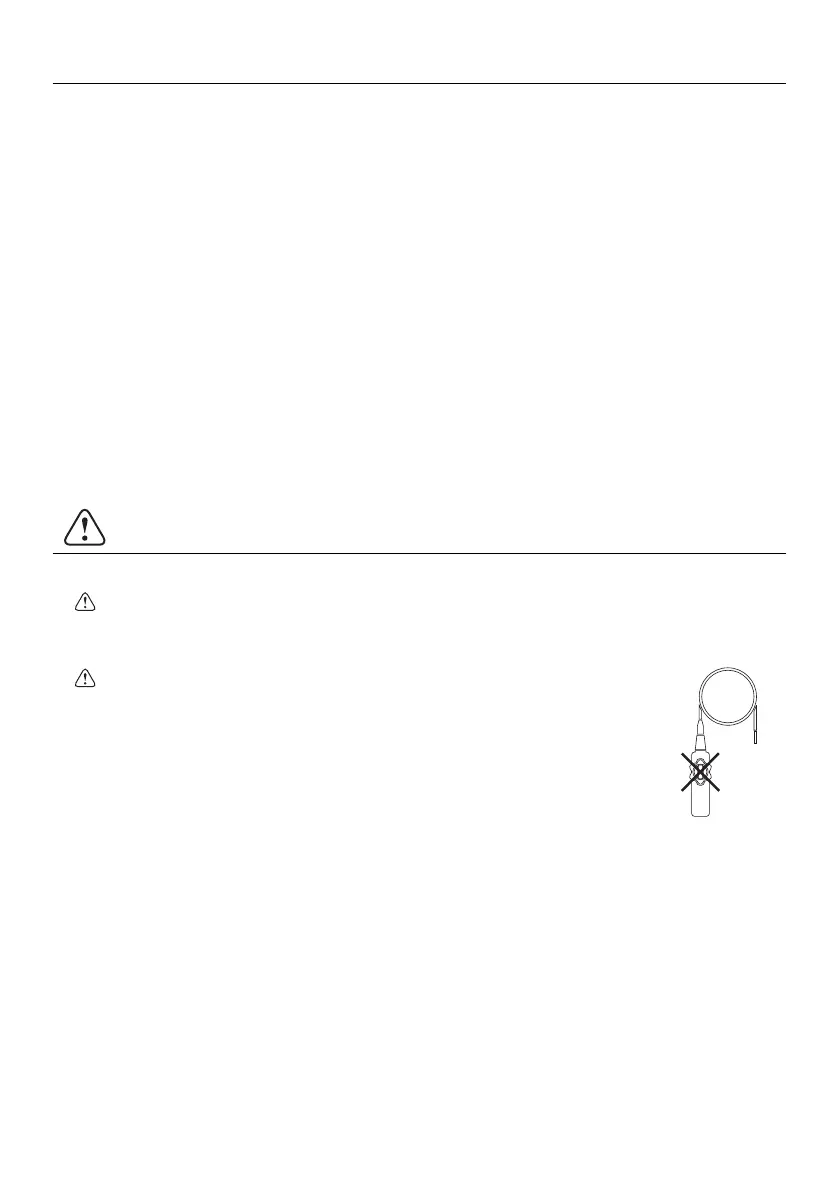

Cautions
The IP67 waterproof rating applies to the monitor when the bottom panel access cover is fully in
place.
For the Articulating Probe, do not operate the articulation knob with the probe
in a coiled configuration. This will damage the articulation controls!
HDV600-en-GB_V2.9 8/16 3
Description
Monitor
1. Probe connector
2. Camera button
3. Video button
4. Rotate image button
5. Display
6. Zoom buttons
7. Light intensity buttons
8. Power Button
9. Scroll buttons
10. Selection buttons
11. USB connector
12. Microphone
13. SD card slot
14. Video output jack
15. Reset button
16. AC adaptor connector
Articulating Probe
1. Articulation knob
2. Articulation tension knob
3. Articulating camera
4. Light intensity buttons
5. Power button
6. AC Adaptor and extension cable sockets
7. Carrying strap
Wireless Transmitter
1. Probe Connector
2. Light Intensity buttons
3. Power button
4. AC Adaptor and extension cable sockets
5. Carrying strap
Probe accessories
1. Anti-snag tip
2. Magnet
3. 45° Mirror
Probe
1. Camera
2. Shaft
3. Monitor connector
1 2 345
6
7
1 2 3 4
5
1 2 3
1 2 3
1
2
3
4
5
6 7 8 9 10
11 12 13 14 15 16
